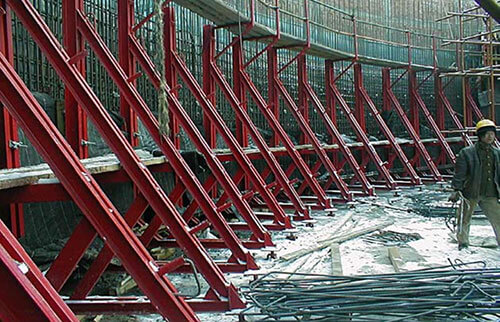

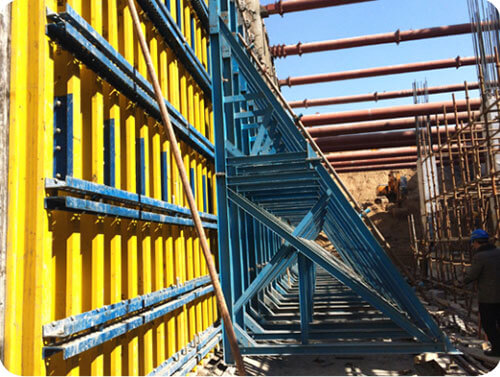

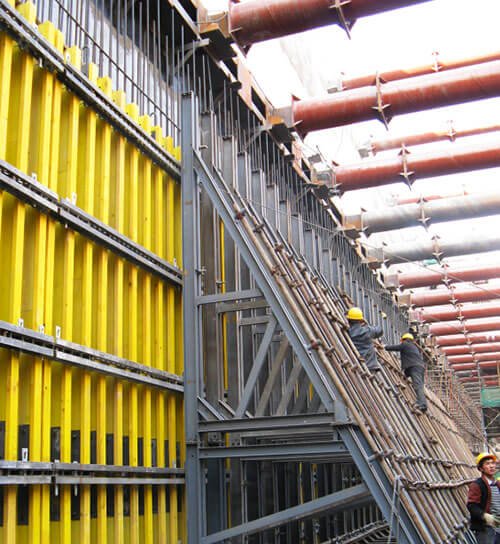

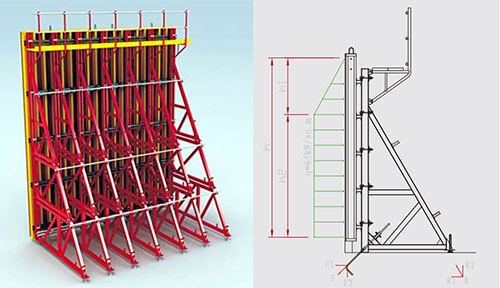

Jiaquan Single Side Supporting formwork system enable the concreting forces to be safely transferred by way of diagonal anchors in cases where it is not possible to use tie-rods in panel formwork through the concrete. This system has the advantages of easy operation, safe load bearing, better wall surface effect, etc. It is the best choice for the underground project in urban area with limited construction space. This system has been widely applied in the construction of basement walls, sewage treatment plants, subway stations, express train stations, and slope protection walls.

Advantages ---

• •The construction is easy and fast, there is less anchor and the stress is reasonable.
• •The short concrete reinforced bars can also be used. The pouring height is adjustable.
• •The Max. height of one pouring is 7.7m.
• •The components are highly standardized and can be used universally.

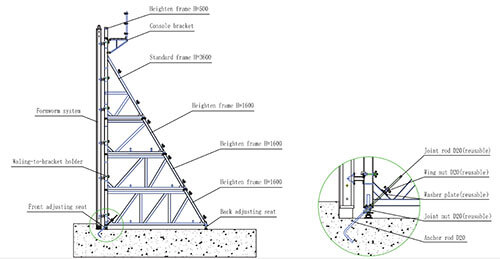

• •The body bracket can be sorted into four types according to the height: standard frame H=3600mm, heighten frame H=500mm, heighten frame H1=1800mm, and heighten frame H2=1800mm
